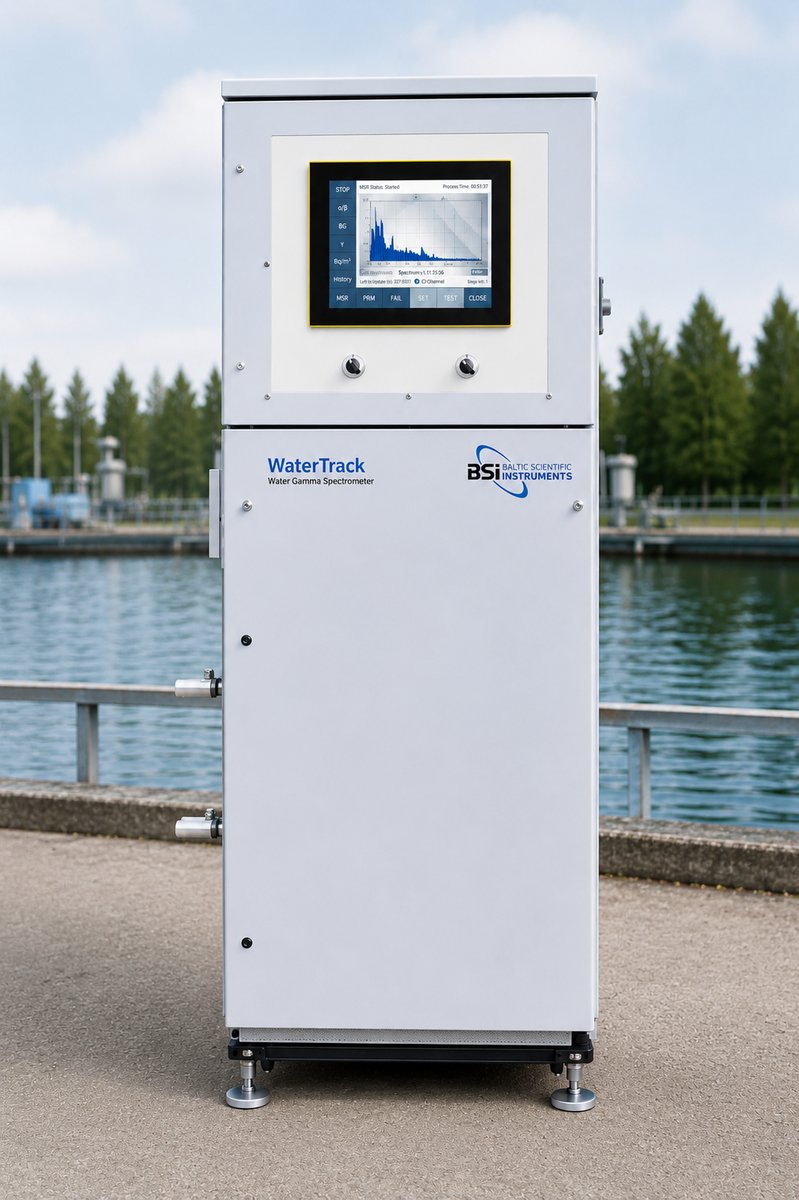

WaterTrack Online Water Monitoring Station

Применение

WaterTrack Online Water Monitoring Station is designed for continuous monitoring of the specific activity content of Cs-137 and/or other radioactive elements in Bq/l in running water. Utilizing a high-sensitivity scintillator, it enables real-time detection and quantification of radioactive elements in liquids. The system is ideal for environmental surveillance, industrial discharge monitoring, and water treatment facilities, offering low detection limits and precise measurements. Its robust design ensures consistent performance in diverse conditions, while user-friendly interfaces simplify operation and data analysis.

Особенности

Sealed metal cabinet with pipes for connecting to the water supply system, including a stainless steel tank with a capacity >15 liters;
5 cm lead shield installed around the tank;
Ø2x2” scintillation detector SrI2(Eu) with <3.5% energy resolution installed inside the tank with (NaI(Tl), CeBr3 – optionally);
4096 channels MCA for gamma spectrometry;
Evaluation of measurement results according to ISO 11929;
Automatic stabilization of gamma spectrometric channel by K-40 peak;
Continuous self-testing procedures with an alarm signal and messages.

ПОЛНЫЙ КОМПЛЕКТ

Scintillation gamma detector installed inside the tank;
Digital Multi Channel Analyzer suitable for scintillation detector;
Analytical software package preinstalled at the system;
20 l stainless steel metal tank;
5 cm lead protection installed around the tank with a gamma detector;
Sealed metal cabinet with pipes for connecting the water supply system;
Water pump with computer controlled and monitored water flow sensors, pressure sensors, temperature sensors, etc.;
Documentation set.

Optional

Working station with preinstalled software package;
UPS;
Air conditioner.

ОПИСАНИЕ

The WaterTrack Online Water Monitoring Station is developed for online monitoring of radioactive element presence in the continuous flow of water.

The biggest advantage of the WaterTrack Online Water Monitoring Station is that there is no need to stop supply of water to make sampling. Water analysis is performed in online mode. This is especially vital when drinking water analysis is performed. The WaterTrack Online Water Monitoring Station doesn’t need presence of operator and measurement results can be accessed from any location in online mode through specially dedicated software package RAVEN. Transmission of measured data is performed via the ModBus/TCP protocol.

The WaterTrack Online Water Monitoring Station can be operated as a standalone unit or can be connected to the network of similar Stations intended for online analysis of water and air. Central web-based software package RAVEN is available to connect all WaterTrack Online Water Monitoring Stations in one centralize measurement network.

Onboard software main functions:

Measurement of specific activity, dead time, count rate, etc.;
Background measurement;
Measurement of the flow of pumped water;
Measurement database;
Measurement log;
Graphic and tabular presentation of measurement results with the ability to select data for a period;
Large nuclide library.

СПЕЦИФИКАЦИЯ

Parameter	Value
Gamma energy range	from 0.08 to 3 MeV
Gamma concentration measuring range	from 0.5 to 10⁶ Bq/m3
Total number of identified radionuclides	15 (adjustable)
Maximum flow rate	up to 50 L/min
Maximum pressure	up to 10 bar
Operational temperature	from 0 to +50°C
Dimensions	600 x 820 x 1680 mm
